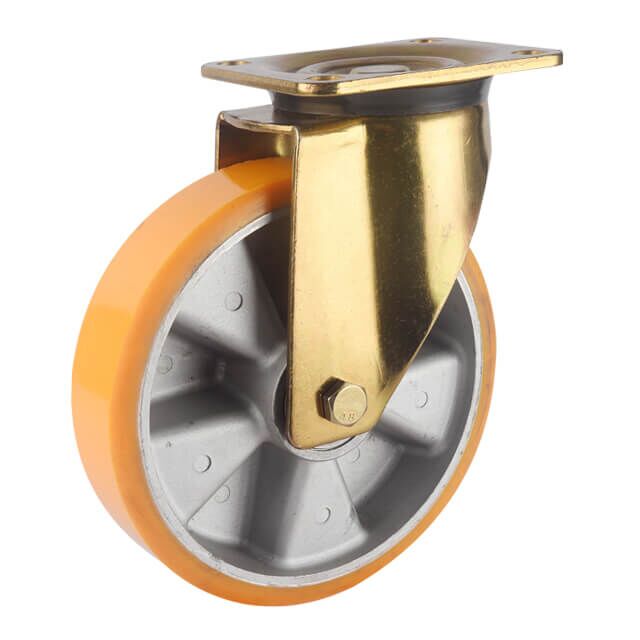

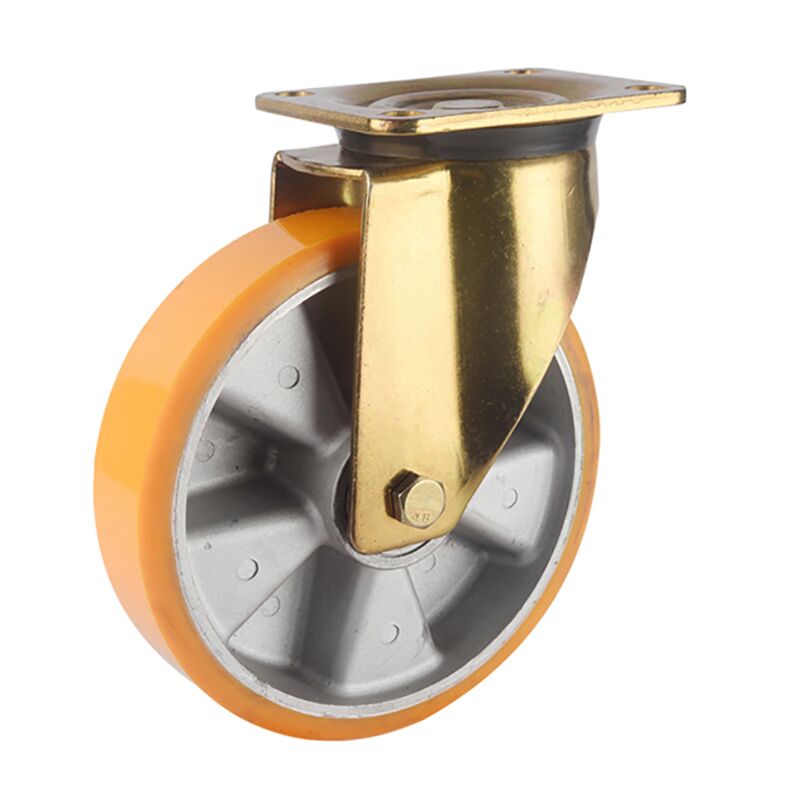

80 series machinery plate swivel PU caster

  • White/Yellow zinc plated pressed steel housing
  • Heat-treated 7-layer swivel head raceways and hardened steel balls
  • Excellent rolling and swivel performance under big load
  • Excellent performance and ultra durability
  • Quality aluminum core PU/Elastic rubber wheels, cast iron core PU wheels and Nylon wheels
  • Water, oil & grease, abrasion, friction resistance
  • High-quality double precision ball bearings
  • Nylon dustproof seal

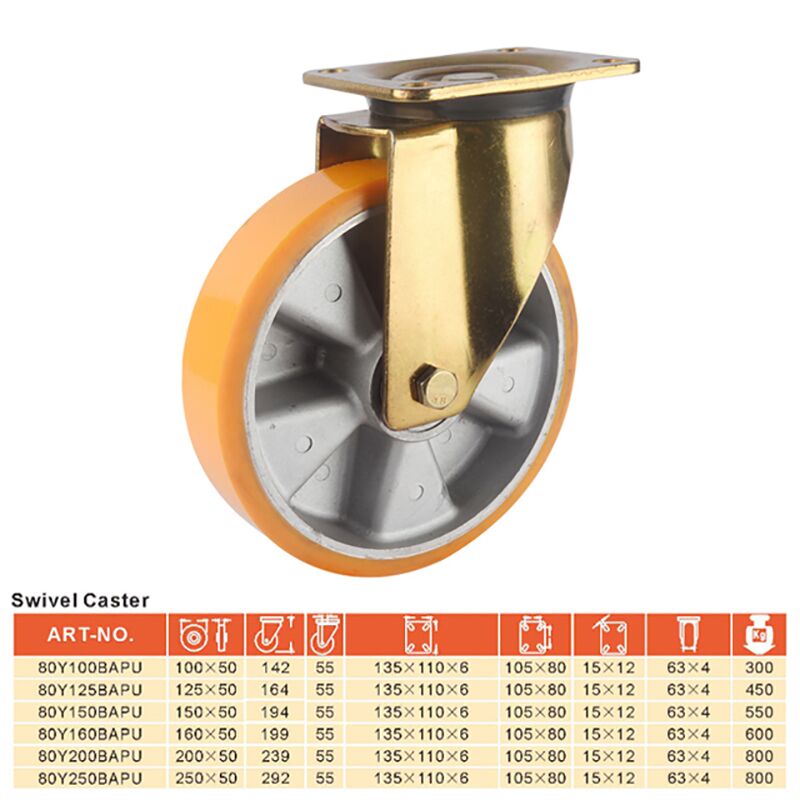

  • Wheel size: 100mm (4″) to 250mm (10″)
  • Up to 800KG load capacity

Additional information

Item No.

80YxxxBAPU

Mounting types

Top plate swivel

Bearing

Double precision ball bearings

Surface treatment

Zinc plated

Load capacity

300KG-800KG

Wheel options

PU on cast iron-Double ball bearing, PU on aluminum-Double ball bearing, Elastic rubber on aluminum core, Nylon (Polyamides)-Balling bearing

When it comes to heavy‑duty logistics and manufacturing, our heavy‑duty machinery casters deliver outstanding performance. Featuring a 4 mm heavy‑duty fork, 6 mm thick top plate, dual hardened swivel heads, double high‑precision ball bearings, and dust‑proof nylon seals, our casters excel at withstanding high impact loads while resisting cracking, tearing, breaking, and swelling. They offer easy maintenance and a long service life, helping you reduce overall costs and save on your budget.

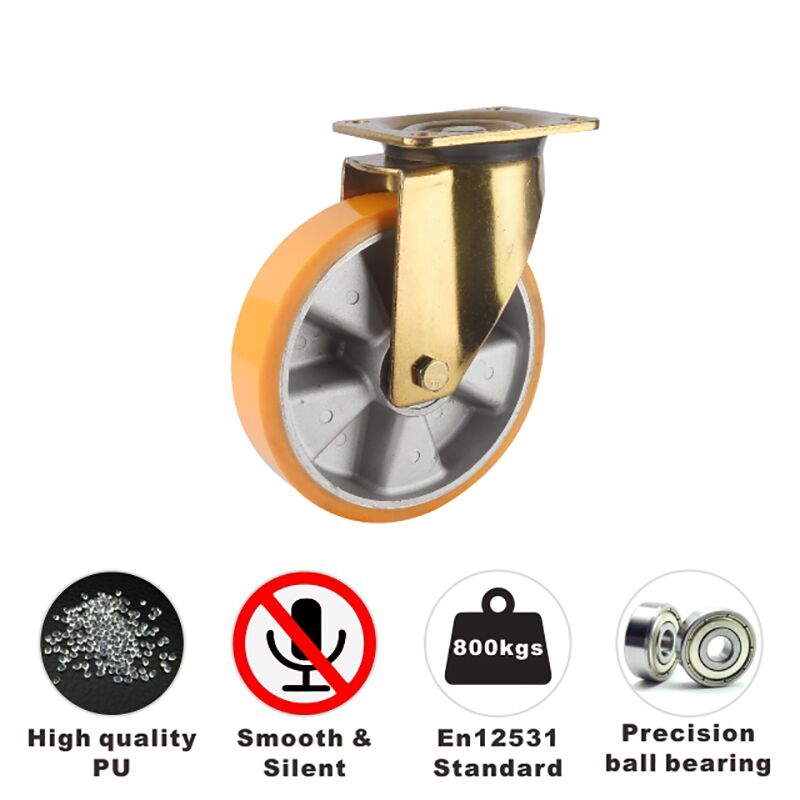

The caster fork is constructed from high‑grade pressed steel, either formed or welded. It comes with an attractive, durable zinc‑plated finish of over 8 μm in thickness. Our casters have passed the EN12531 dynamic load test and 24‑hour salt spray test.
We offer a wide range of wheels in various materials, including PU on aluminum or cast iron cores, elastic rubber, nylon, and more. These casters are ideal for use in sales counters, heavy‑duty dollies, high‑load trolleys, hand trucks, steel cages, and heavy material handling applications.
