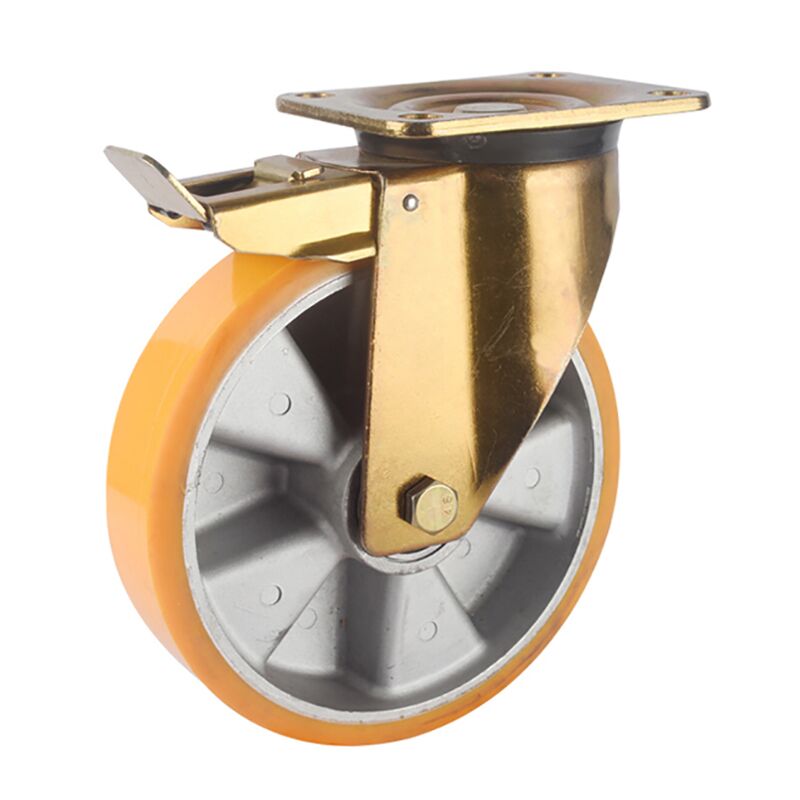

80 Series Machinery Dual Brake PU Caster

Aluminium core PU wheel heavy duty swivel caster with dual brake
Aluminium core PU wheel heavy duty swivel caster
Aluminium core PU wheel heavy duty rigid caster
Aluminium core PU wheel heavy duty swivel caster with rear brake
Aluminium core PU wheel heavy duty swivel caster with dual brake
80 series heavy duty PU caster wheel
80 series heavy duty PU caster wheel
80 series heavy duty PU wheel
Aluminium core PU wheel heavy duty swivel caster with dual brake
分类 , 标签
  • White/Yellow zinc plated pressed steel housing
  • Excellent performance and durability
  • Heat-treated 7-layer swivel head raceways and hardened steel balls
  • Excellent rolling and swivel performance under big load, ultra durability
  • Quality aluminum core PU/Elastic rubber wheels, cast iron core PU wheels, and Nylon wheels
  • Water, oil & grease, abrasion, friction resistance
  • High-quality double precision ball bearings
  • Nylon dustproof seal
  • Wheel size: 100mm (4″) to 250mm (10″)
  • Up to 800KG load capacity

Additional information

Item No.

80YxxxBAPUB
Wheel Diameter

100mm(4"), 125mm(5"), 150mm(6"), 200mm(8")
Wheel Material

Aluminium Core Polyurethane
Bearing Type

Double precision ball bearings
Mounting Type

Top plate swivel
Surface Treatment

Zinc plated, Yellow zinc plated
Temperature Range

-20℃ to +80℃
Sample Lead Time

1–3 days
Production Lead Time

30–40 days
Customizable

Yes
Send inquiry
When it comes to heavy‑duty logistics and manufacturing, our industrial machinery casters deliver outstanding performance.
Featuring a 4 mm heavy‑duty fork, 6 mm thick top plate, dual-hardened swivel headset, double high-precision ball bearings, and dust-proof nylon seal, these casters excel at withstanding high impact loads. They offer superior resistance to cracking, tearing, breaking, and swelling, ensuring easy maintenance and long service life to help reduce your total cost of ownership.

The caster fork is constructed from high-grade pressed steel, formed or welded, with an attractive and durable zinc-plated finish exceeding 8 μm in thickness.

Our casters have passed the EN12531 dynamic load test and 24-hour salt spray test.

We offer a wide range of wheel materials, including PU on aluminum or cast iron cores, elastic rubber, nylon, and more.

These casters are ideal for sales counters, heavy-duty dollies, high-load trolleys, hand trucks, steel cages, and heavy-duty material handling applications.
