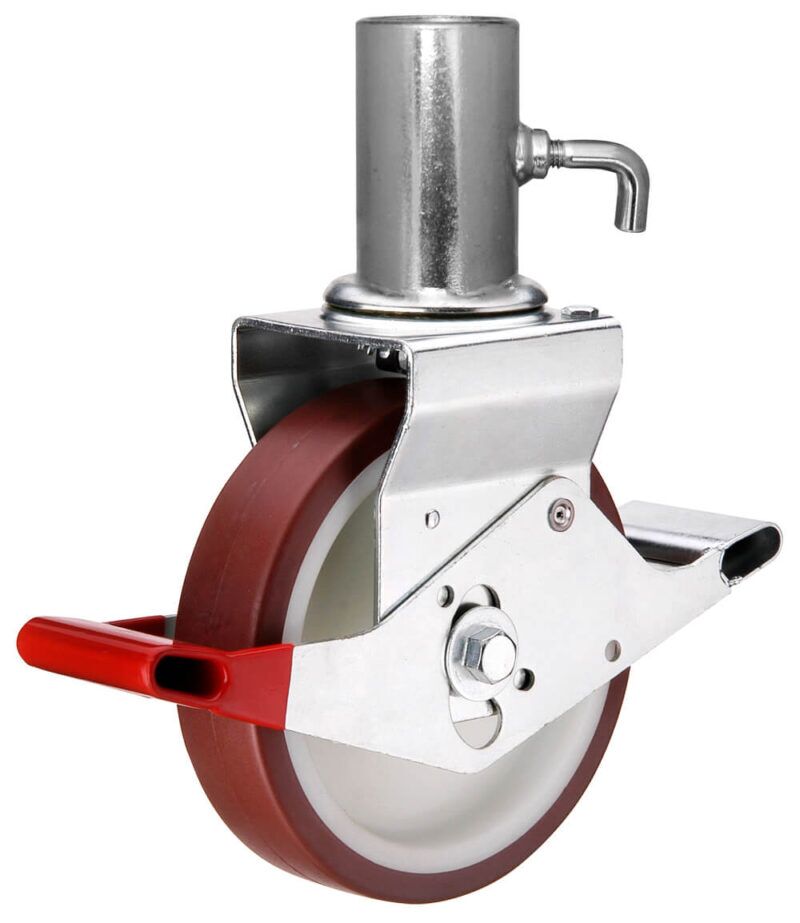

32 series hollow tube scaffolding caster

  • White zinc plated pressed steel housing
  • ≥8μm plating thickness, 24 hours salt spray test passed
  • High-grade pressed steel, 4mm caster fork
  • Double locking design, red PU dipped brake pedal
  • Heat-treated dual head raceway and hardened steel balls, solidly constructed
  • 60x100mm hollow pipe
  • 1200KG safe working load, tested by TUV under EN1004 standard
  • High-quality PU on Nylon core wheel, high load bearing capacity, abrasion, tear & impact resistance

Additional information

Item No.




Surface treatment

Zinc plated

Mounting types

Hollow pipe

Load capacity

EN1004 1200KG

Our 32 series offer a double locking design, hardened steel balls, and heat-treated double head raceway for maximum security and smooth caster rotation.

It fits into structural framing made of round metal tubing, they are suitable for janitorial, maintenance, painting, electrical, and construction applications.

With high impact strength, good tear and abrasion resistance, and a maximum safe working load of 1200KG,  it also fits into cuplock and ringlock scaffolding after switching to solid stem+tube fittings.
