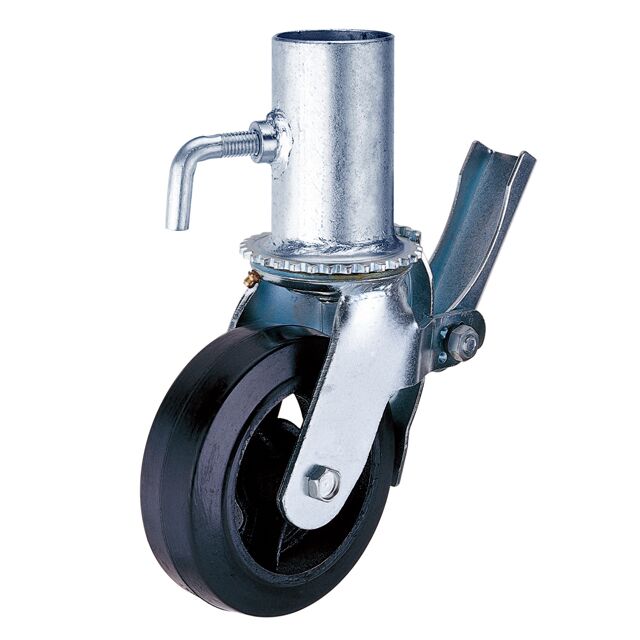

31 series hollow pipe scaffolding caster

  • White zinc plated pressed steel housing
  • ≥8μm plating thickness, 24 hours salt spray test passed
  • High-grade pressed steel, 6mm caster fork
  • 60x100mm hollow pipe, with stopper
  • Dual head raceway
  • Cast iron hub with grease fitting adapter for easy maintenance
  • High impact strength
  • Wheel size: 125mm (5″) to 200mm(8″)

Additional information

Item No.

31xxxHPB

Bearing

Steel roller bearing

Mounting types

Hollow pipe

Surface treatment

Zinc plated

Load capacity

150KG-250KG

Our 31 series offer a double locking design for security. Scaffolding can support heavy loads but requires a solid foundation, when the scaffolding is assembled on a concrete floor, wheels or base plates are recommended. Compatible with exterior standard or arch frame scaffolds

High impact strength, good tear and abrasion resistance make it an ideal caster for scaffolding.
