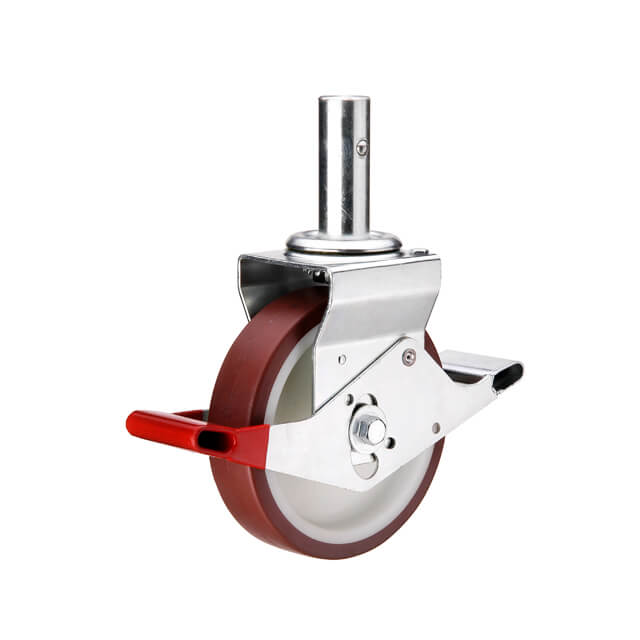

32 series aluminum scaffolding stem caster

  • White zinc plated pressed steel housing
  • ≥8μm plating thickness, 24 hours salt spray test passed
  • High-grade pressed steel, 4mm caster fork
  • Double locking design, red PU dipped brake pedal
  • Heat-treated dual head raceway and hardened steel
  • EN1004 standard 90mm stem, with a steel ball and high strength spring inside, won’t fall off easily
  • Top plate, hollow tube, solid stem+hollow tube fittings are available
  • 1200KG static safe working load, tested by TUV under EN1004 standard
  • High-quality PU on Nylon core wheel, high load bearing capacity, abrasion, tear & impact resistance

Additional information

Item No.

32xxxPUNYS

Mounting types

Stem with brake

Bearing

Bushing

Surface treatment

Zinc plated

Load capacity

EN1004 1200KG

Our 32 series offer a double locking design, hardened steels, and heat-treated double head raceway for maximum security.

Ideal for aluminum scaffolding, when assembled with an adjustable tube, the scaffolding can be built up evenly on uneven ground.

With high impact strength, good tear and abrasion resistance, and a bearing maximum of 1200KG,  it also fits into cuplock and ringlock scaffolding after switching to stem+tube fittings.
