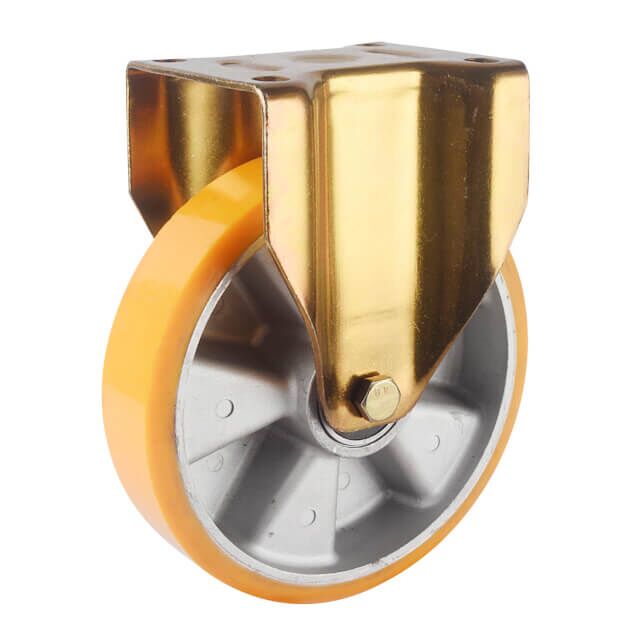

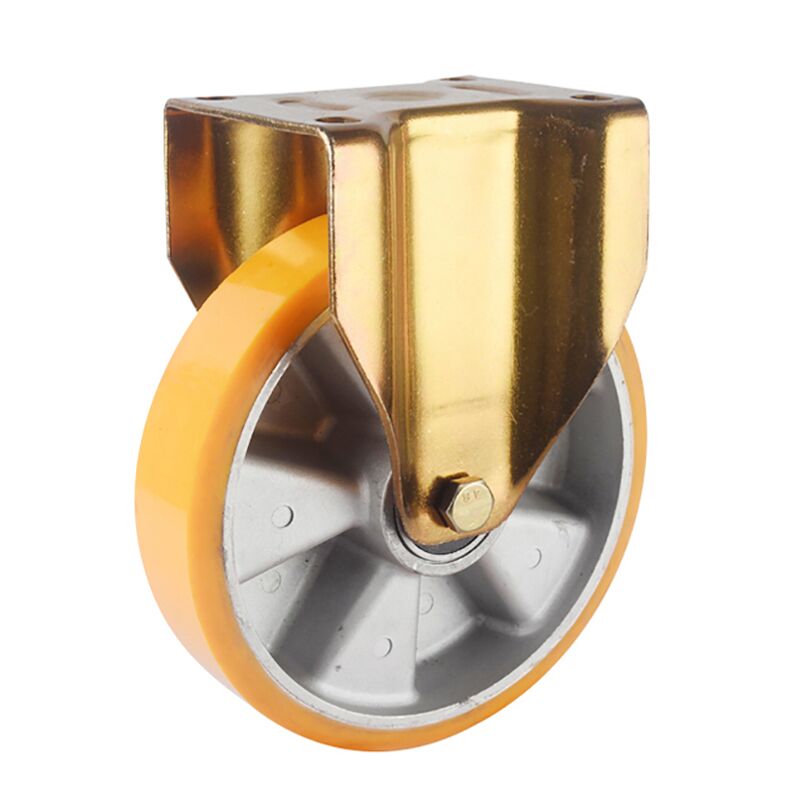

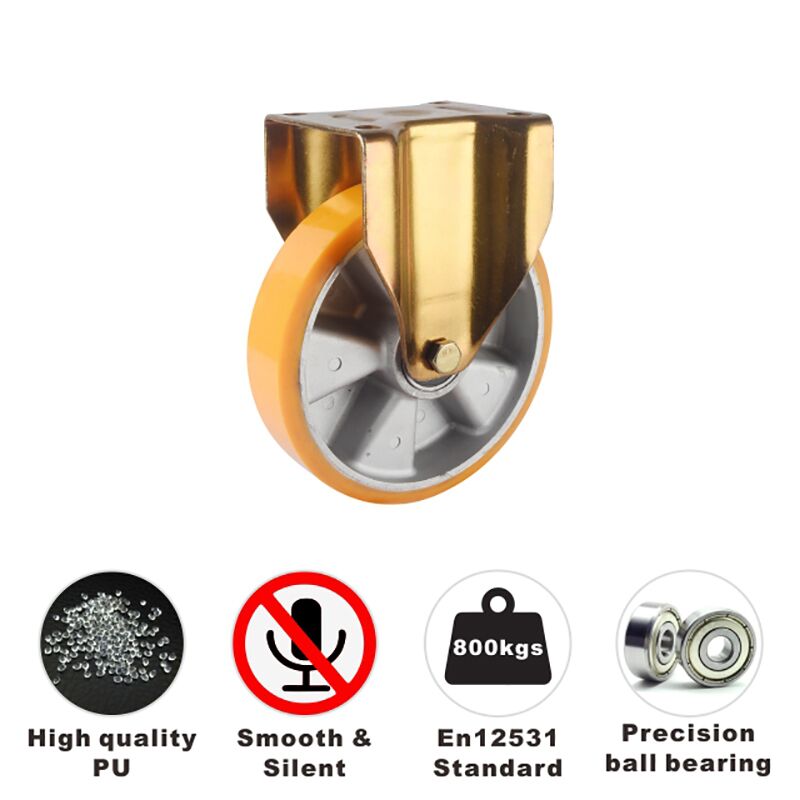

80 series machinery fixed PU caster

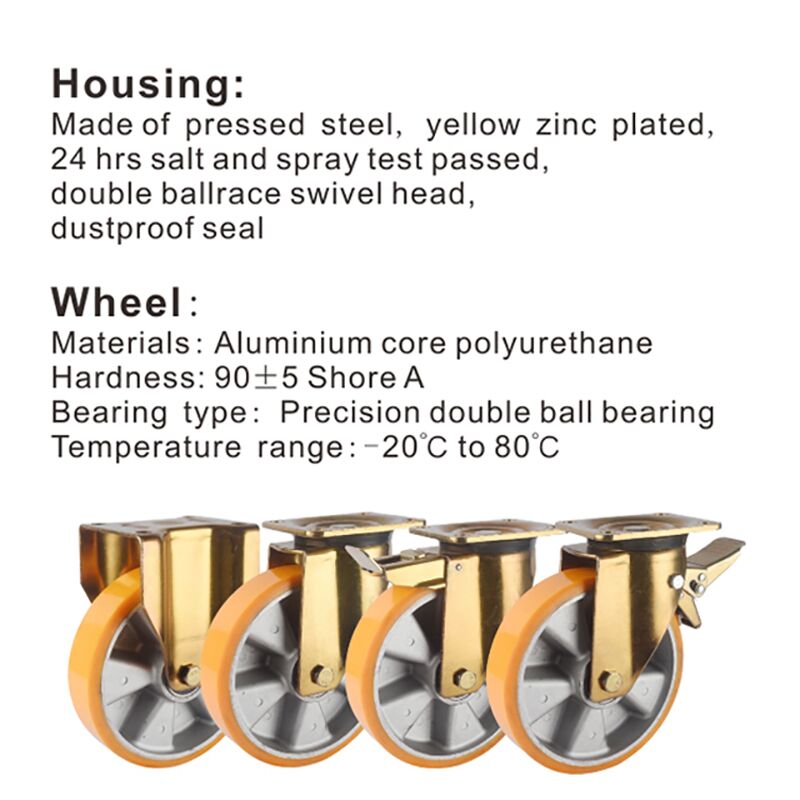

  • White/Yellow zinc plated pressed steel housing
  • Excellent performance and durability
  • Heat-treated 7-layer swivel head raceways and hardened steel balls
  • Excellent rolling and swivel performance under big load, ultra durability

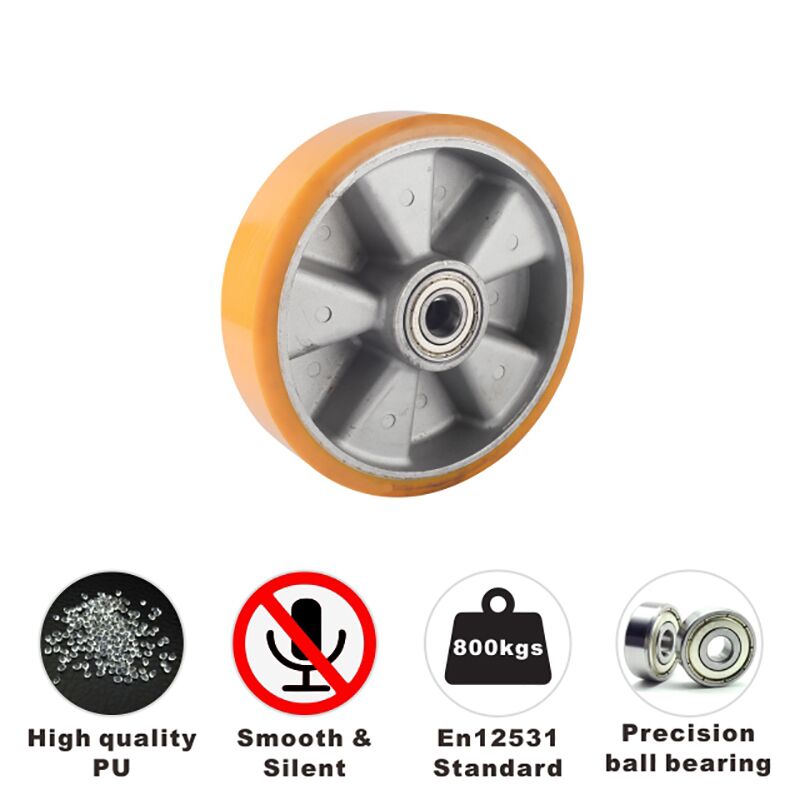

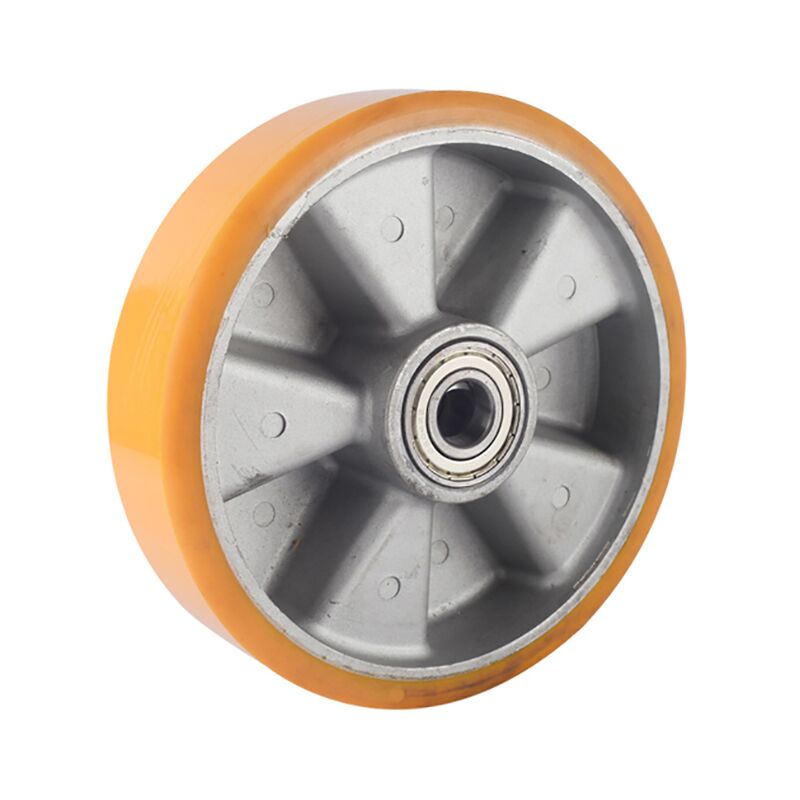

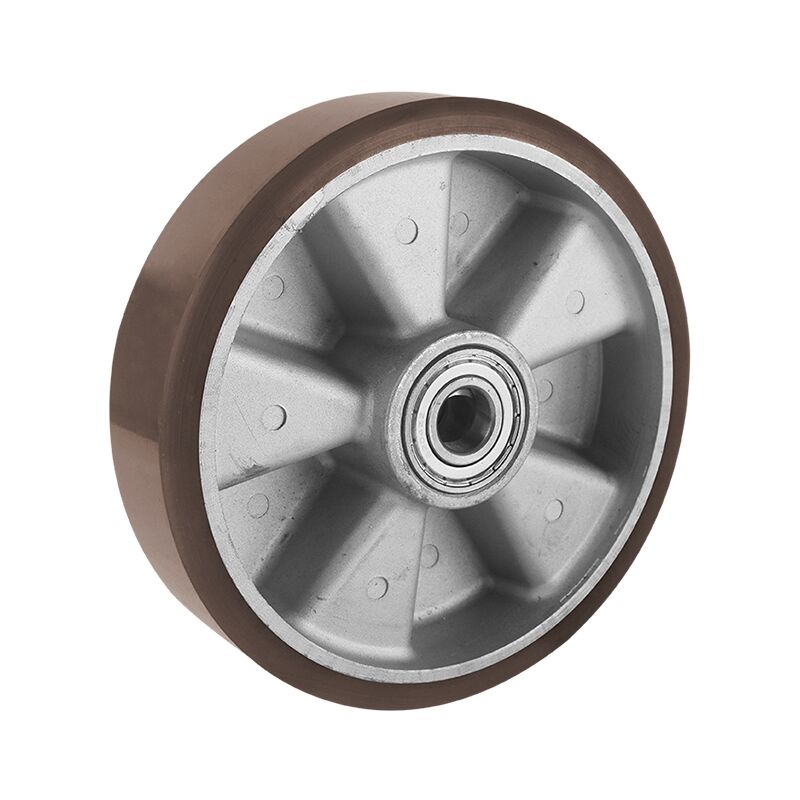

  • Quality aluminum core PU/Elastic rubber wheels, cast iron core PU wheels, and Nylon wheels
  • Water, oil & grease, abrasion, friction resistance
  • High-quality double precision ball bearings
  • Nylon dustproof seal
  • Wheel size: 100mm (4″) to 200mm (8″)
  • Up to 830KG load capacity

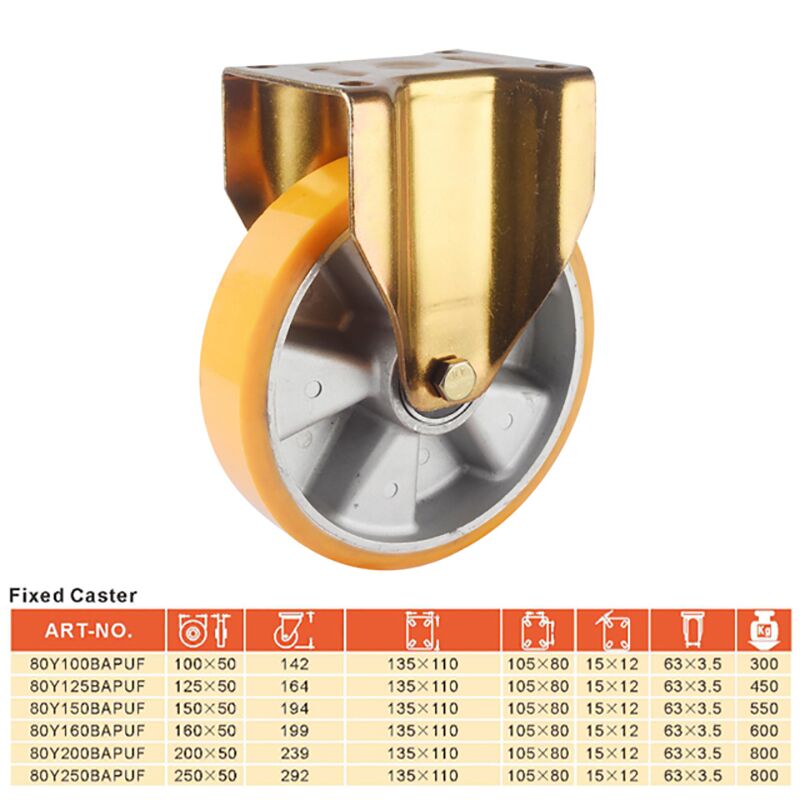

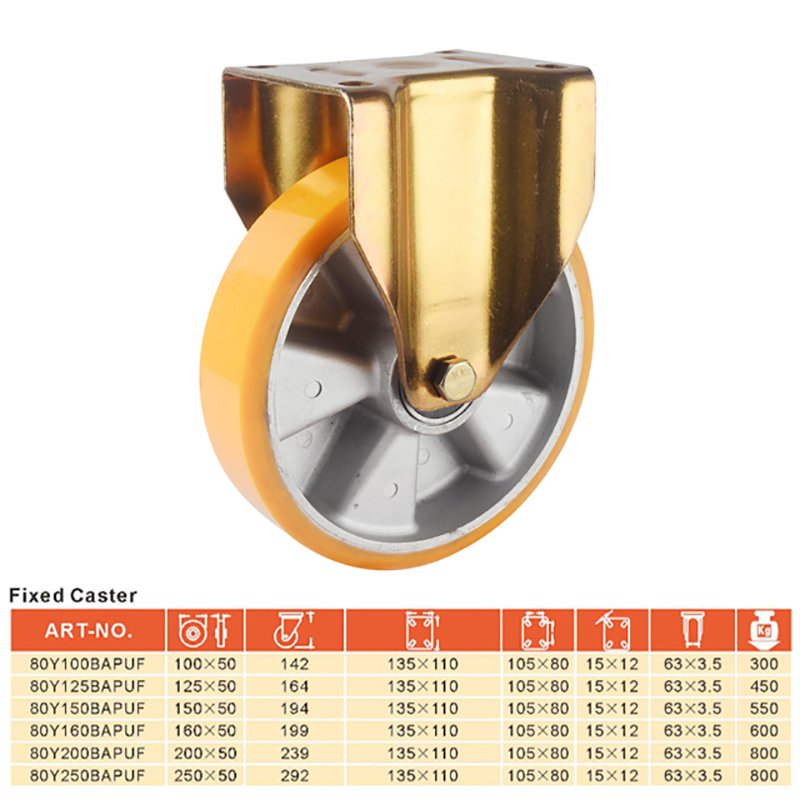

Additional information

Item No.

80xxxBAPUF

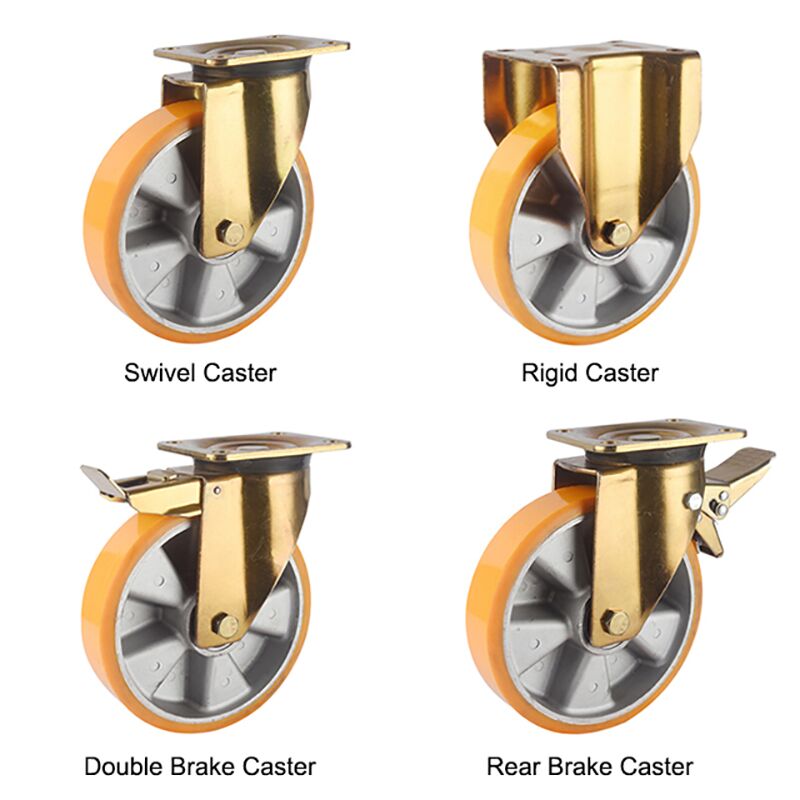

Mounting types

Fixed

Bearing

Double precision ball bearings

Surface treatment

Zinc plated

Load capacity

330KG-830KG

Wheel options

PU on cast iron-Double ball bearing, PU on aluminum-Double ball bearing, Elastic rubber on aluminum core, Nylon (Polyamides)-Balling bearing

When it comes to heavy-duty logistics and manufacturing, our machinery casters play their role well. With a 4mm strong heavy-duty fork and 6mm thick top plate, dual hardened swiveling headset, double high-grade precision ball bearings, and dust-proof nylon seal, it shows excellent performance in withstanding high impact loads, offers resistance to cracking, tearing, breaking, or swelling. Easier maintenance and long service life will be of help to save your budget and cost.

The caster fork is made of high-grade pressed steel, formed or welded. With an attractive and durable zinc-plated finish of more than 8μm thickness, our casters had passed the EN12531 dynamic load test and 24 hours salt spray test.

Providing various wheels made from different materials like PU on aluminum/cast iron core, elastic rubber, Nylon and etc, it’s perfect for sales counters, heavy-duty dollies, big load trolleys, hand trucks, steel cages, heavy materials handling, etc.
