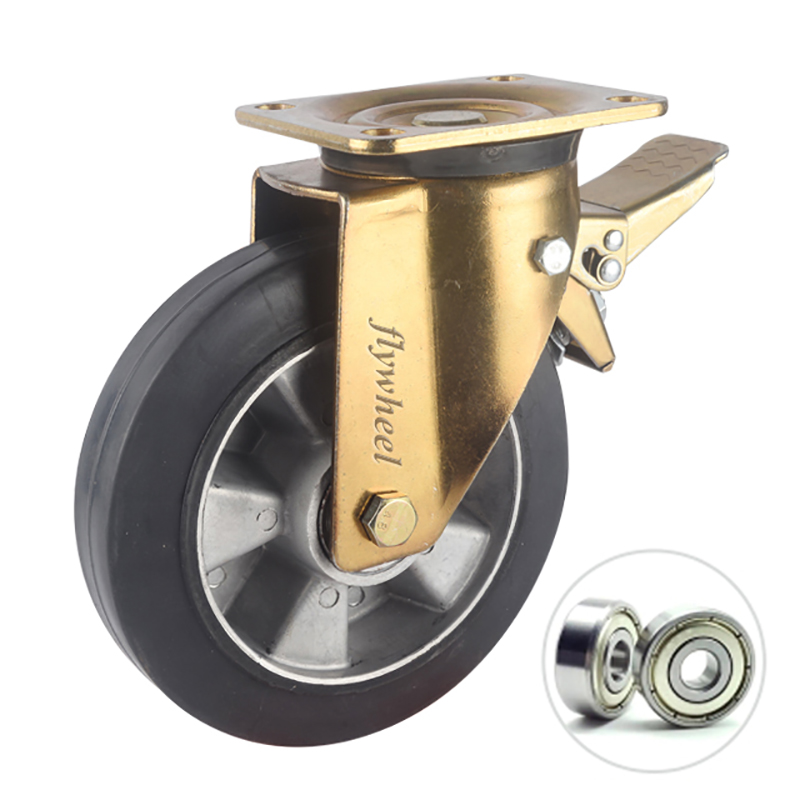

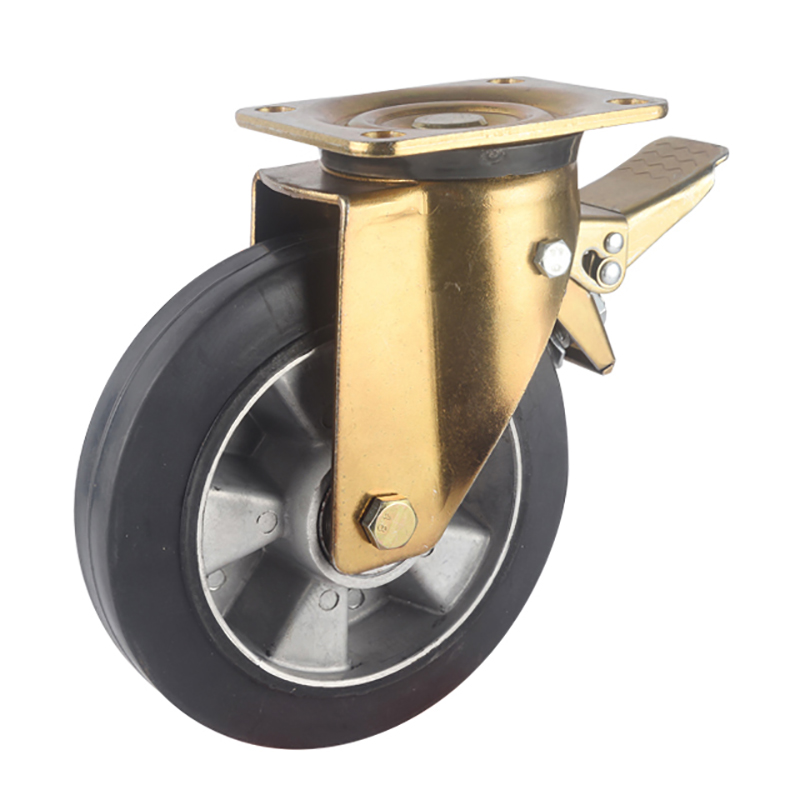

80 series machinery rear brake elastic rubber caster

分类 , 标签 ,

White or yellow zinc plated pressed steel housing for strong corrosion resistance.

Heat-treated 7-layer swivel head raceways with hardened steel balls ensure stable swiveling.

Excellent rolling and steering performance even under heavy loads, with exceptional durability.

Available with a variety of wheel material options to suit different applications.

High-quality double precision ball bearings for smooth rolling and low noise.

Fitted with a nylon dustproof seal to reduce debris ingress and extend service life.

Wheel sizes range from 100mm (4″) to 250mm (10″).

High load capacity: up to 600 kg per caster.

Additional information

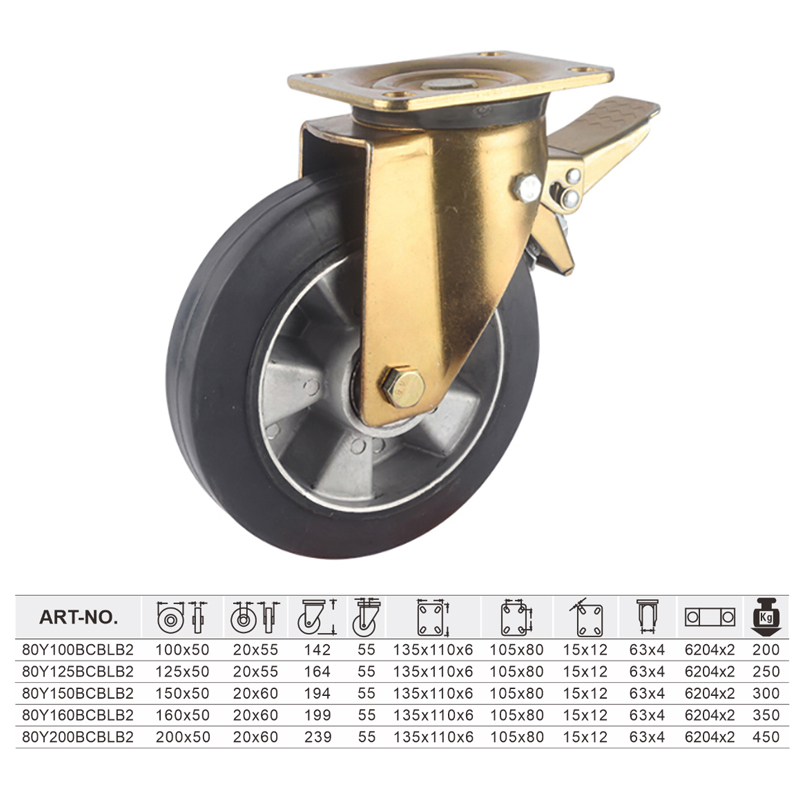

Item No.

80YxxxBABLB2
Mounting types

Top plate swivel
Bearing

Double precision ball bearings
Surface treatment

Zinc plated
Load capacity

200kg-600kg
Wheel options

PU on cast iron-Double ball bearing, PU on aluminum-Double ball bearing, Elastic rubber on aluminum core, Nylon (Polyamides)-Balling bearing
Send inquiry
When it comes to heavy-duty logistics and manufacturing, our machinery casters deliver consistent, reliable performance. Built with a 4mm heavy-duty steel fork, 6mm thick top plate, dual hardened swivel raceways, double high-grade precision ball bearings, and nylon dust-proof seals, these casters ensure stable maneuverability even under high impact loads. Featuring rugged construction and low maintenance requirements, they offer long service life and help lower your total operational costs.
The caster fork is made from high-grade pressed steel, available in both pressed and welded structures. Finished with a durable, corrosion-resistant zinc plating (coating thickness over 8μm), these casters have passed the EN12531 dynamic load test and 24-hour salt spray test, ensuring stable performance in harsh industrial environments.
We offer a wide selection of wheel materials, including aluminum/core PU, cast iron core PU, elastic rubber, nylon, and others. These heavy-duty casters are ideal for heavy-duty dollies, high-load trolleys, hand trucks, steel cages, industrial machinery, and various heavy material handling applications.
