| Item No. | 80xxxBAPUSW |
|---|---|
| Wheel Diameter | 100mm(4"), 125mm(5"), 150mm(6"), 200mm(8") |
| Wheel Material | Aluminium Core Polyurethane |
| Bearing Type | Double precision ball bearings |
| Temperature Range | -20℃ to +80℃ |
| Sample Lead Time | 1–3 days |
| Production Lead Time | 30–40 days |
| Customizable | Yes |
| Item No. | Wheel Dia. x Tread Width (mm) | Bore Dia. x Hub Width (mm) | Bearing | Load Capacity (kg) |
|---|---|---|---|---|
| 80Y100BAPUSW | 100x50 | 20x60 | 6204x2 | 300 |
| 80Y125BAPUSW | 125x50 | 20x60 | 6204x2 | 450 |
| 80Y150BAPUSW | 150x50 | 20x60 | 6204x2 | 550 |
| 80Y200BAPUSW | 200x50 | 20x60 | 6204x2 | 800 |

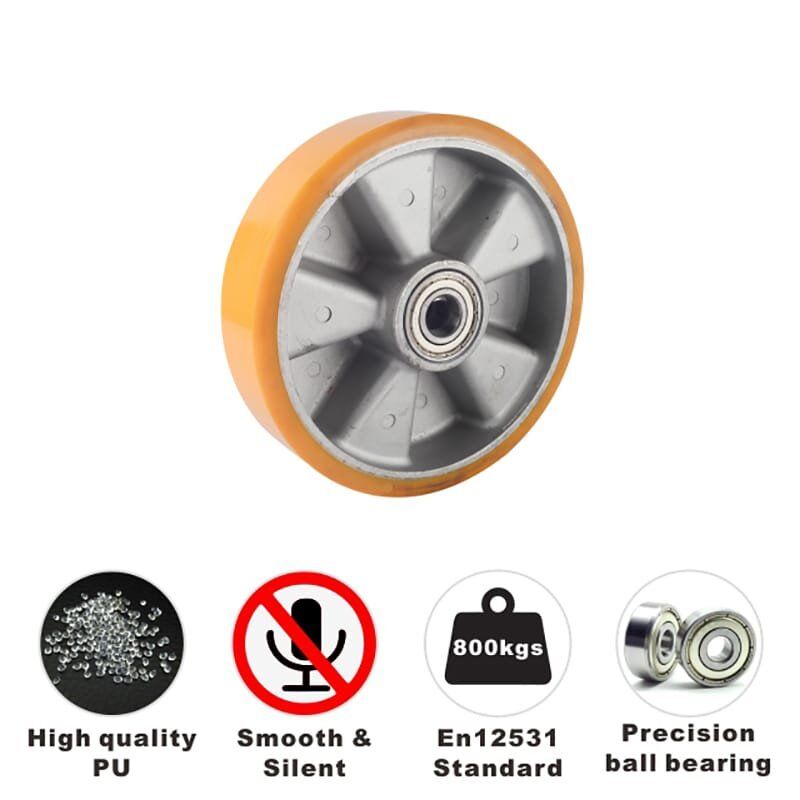

Reinforced Aluminum Core | Premium Polyurethane Tread |
High-strength aluminum core provides excellent durability, dimensional stability, and reliable performance under heavy loads. | Wear-resistant PU material offers low rolling resistance, quiet operation, abrasion resistance, and floor protection. |
High Load Capacity | Precision Bearing System |
Designed for heavy-duty applications with load capacities up to 800kg per wheel. | Equipped with high-quality bearings for smooth and stable operation. |
Tested Quality | OEM Customization Available |
Tested in our own laboratory according to EN12531 and EN1004 standards to ensure reliable performance and consistent quality. | Customized sizes, colors, bearings, and specifications are available for OEM projects. |

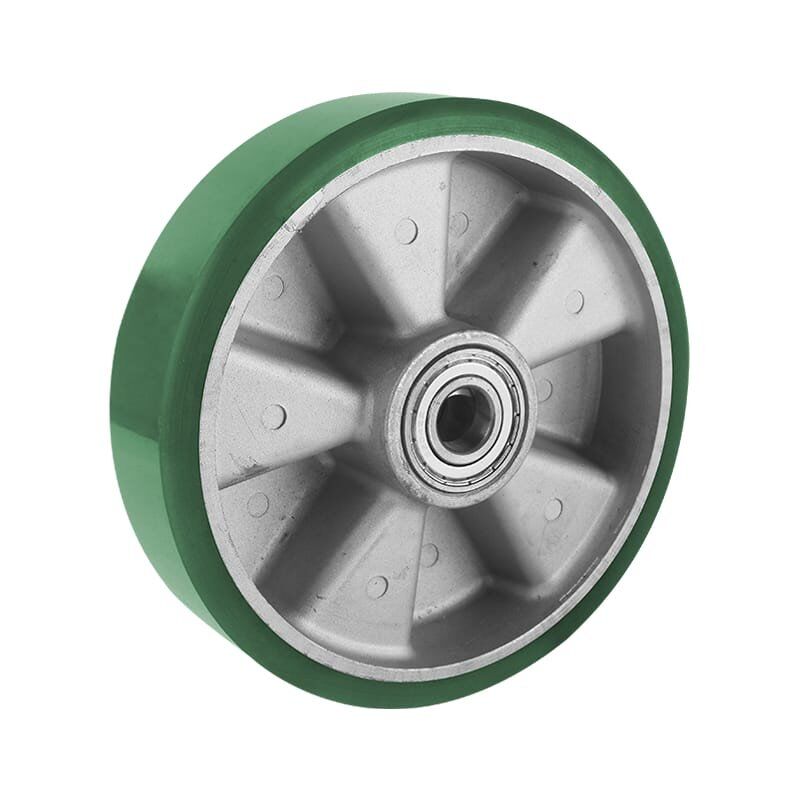

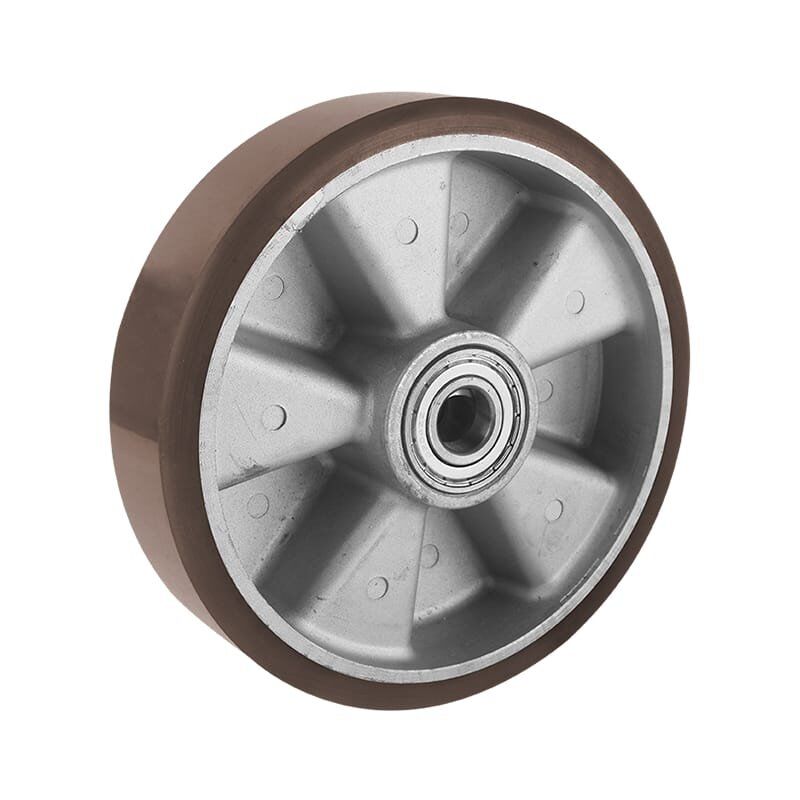

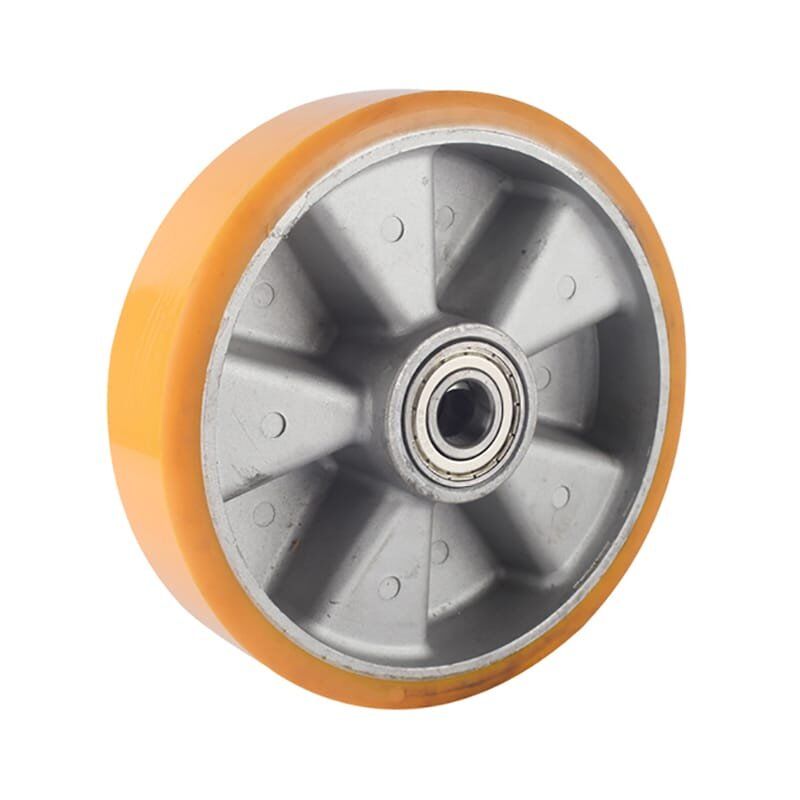

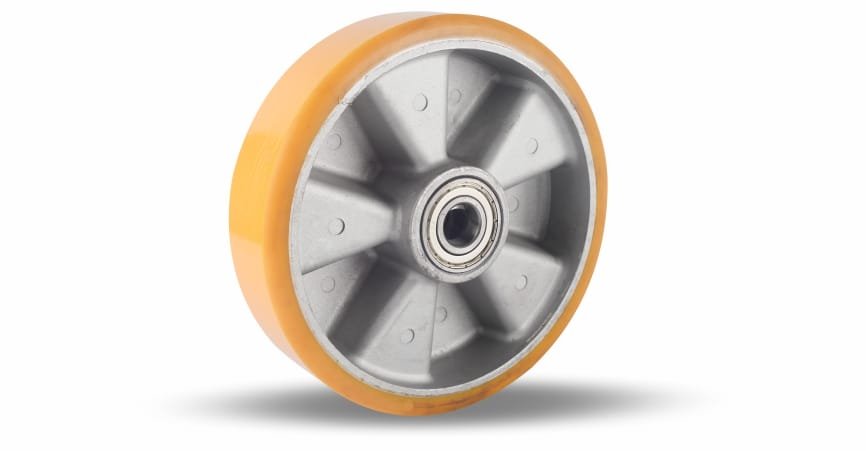

80 Series heavy duty aluminum core polyurethane (PU) wheels are designed for industrial caster applications requiring high load capacity, smooth movement, and long service life.
Featuring a reinforced aluminum core and wear-resistant polyurethane tread, these industrial wheels provide excellent load performance, abrasion resistance, low rolling resistance, and floor protection.
Available in multiple sizes from 100mm to 200mm with load capacities up to 800kg, they are suitable for heavy duty carts, warehouse equipment, machinery systems, and material handling applications.
