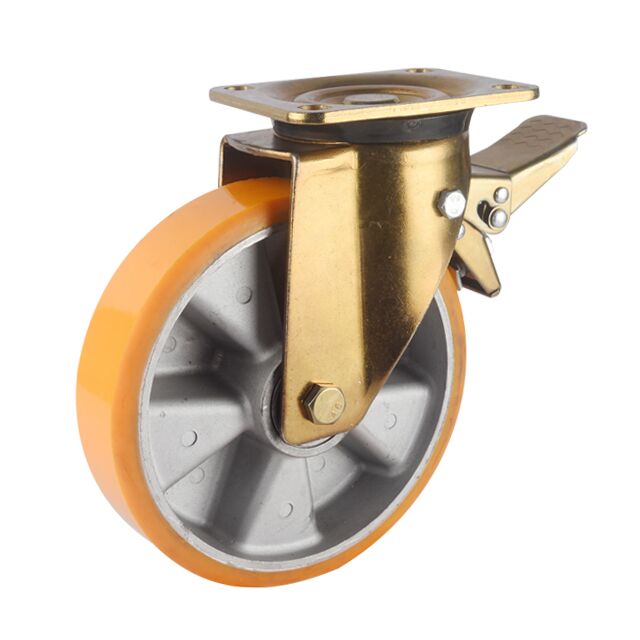

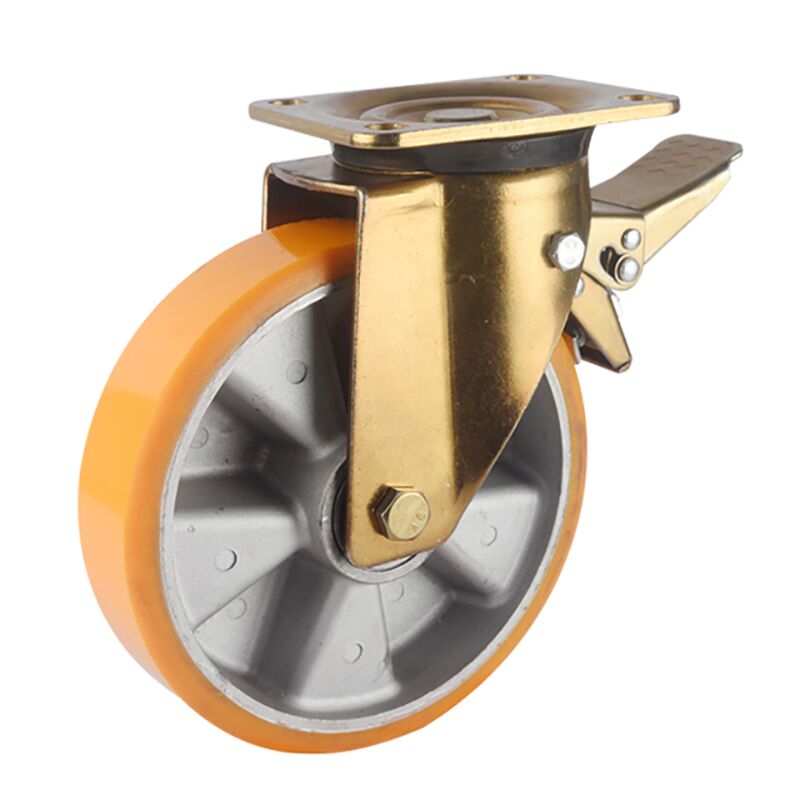

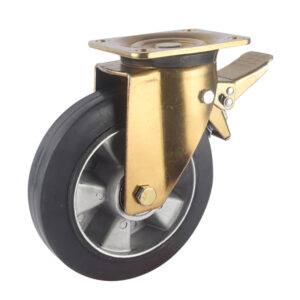

80 series machinery rare brake PU caster

  • White/Yellow zinc plated pressed steel housing
  • Heat-treated 7-layer swivel head raceways and hardened steel balls
  • Excellent rolling and swivel performance under big load, ultra durability
  • Multiple wheels options
  • Water, oil & grease, abrasion, friction resistance
  • High-quality double precision ball bearings
  • Nylon dustproof seal
  • Wheel size: 100mm (4″) to 200mm (10″)
  • Up to 800KG load capacity

Additional information

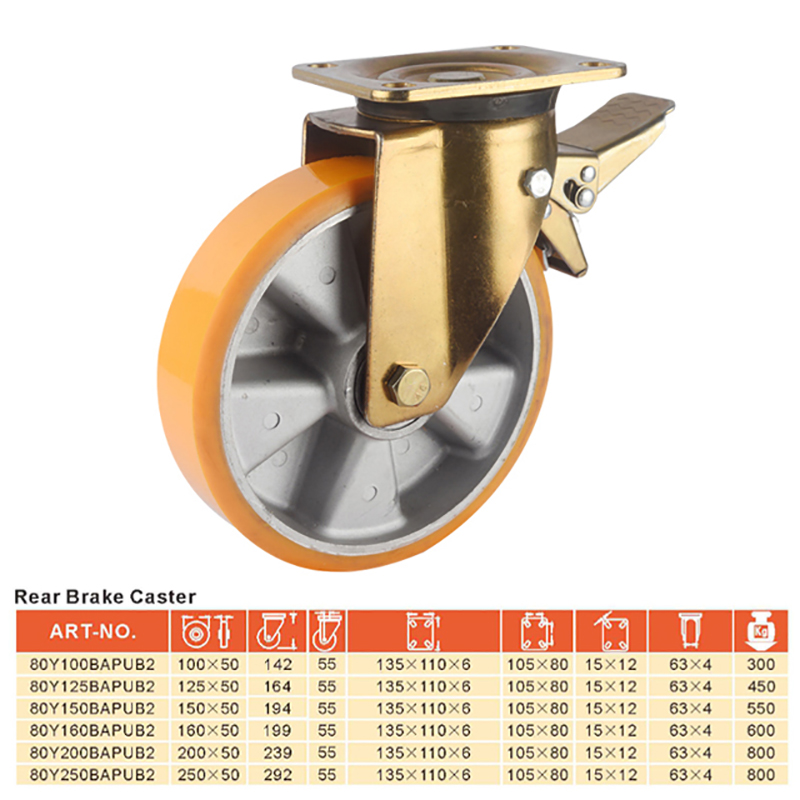

Item No.

80YxxxBAPUB2

Mounting types

Top plate swivel

Bearing

Double precision ball bearings

Surface treatment

Zinc plated

Load capacity

300KG-800KG

Wheel options

PU on cast iron-Double ball bearing, PU on aluminum-Double ball bearing, Elastic rubber on aluminum core, Nylon (Polyamides)-Balling bearing

When it comes to heavy-duty logistics and manufacturing, our machinery casters deliver outstanding performance. Featuring a 4mm heavy-duty fork and 6mm thick top plate, dual hardened swivel heads, double high-grade precision ball bearings, and dust-proof nylon seals, these casters excel at withstanding high impact loads while resisting cracking, tearing, breaking, and swelling. Easy maintenance and long service life help reduce your overall costs and budget.

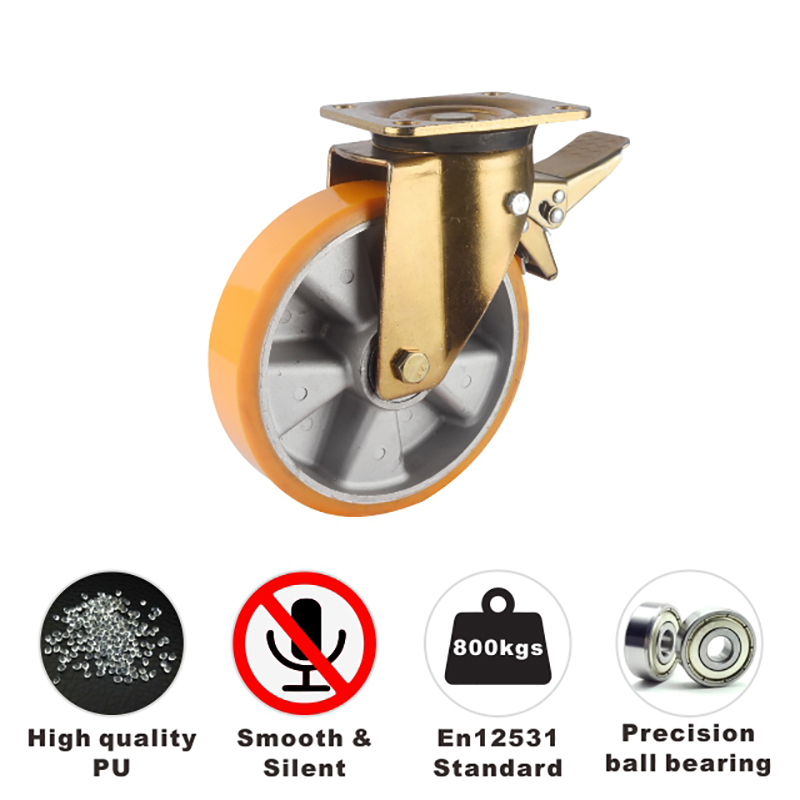

The caster fork is constructed from high-grade pressed steel, either formed or welded. Boasting an attractive and durable zinc-plated finish with a thickness of over 8μm, our casters have passed the EN12531 dynamic load test and the 24-hour salt spray test.

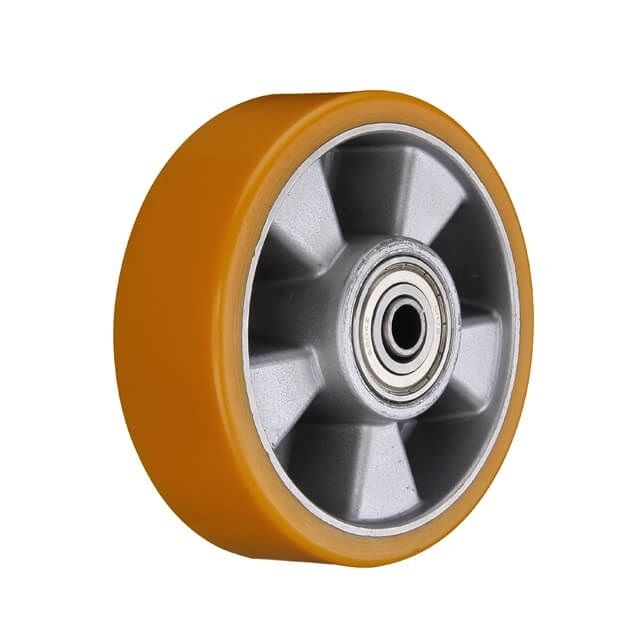

We offer a variety of wheels made from different materials, including PU on aluminum/cast iron cores, elastic rubber, nylon, and more. They are ideal for sales counters, heavy-duty dollies, high-load trolleys, hand trucks, steel cages, heavy materials handling equipment, and other applications.
